Programming best practices

Agent-based modelling, Konstanz, 2024

Henri Kauhanen

21 May 2024

Plan

This week, we will look at a few practices that have the potential to make your code better
Here, “better” can mean:
- more logical organization of code
- better performance (faster running, and/or less memory consumption)
In addition, we will wrap up the first half of the course and talk about any issues/challenges you may have run into

Note

Today’s lecture requires the following Julia packages:

Agents
BenchmarkTools
Random

It would be a good idea to install them now, if your system does not already have them.

Plan

The “best practices” bit of today’s session is broken down into three major topics:
1. Abstract types, inheritance and multiple dispatch
2. Benchmarking
3. Random numbers

Abstract types and inheritance

Some weeks ago, we defined a variational learner type which lives in an unstructured population
Last week, we defined one that lives in a grid space

Abstract types and inheritance

Two possible strategies:

Name both types VariationalLearner
- pro: we can reuse the functions we’ve written that take VariationalLearner objects as arguments, such as speak, learn! and interact!
- con 1: we can’t use both types in the same code
- con 2: Julia does not deal well with type redefinitions, forcing a restart when moving from one definition to the other

Abstract types and inheritance

Two possible strategies:

Give the new type a new name, such as GridVL
- pro: no complaints from Julia
- con: we can’t reuse our functions, since they’re defined for VariationalLearner objects

Abstract types and inheritance

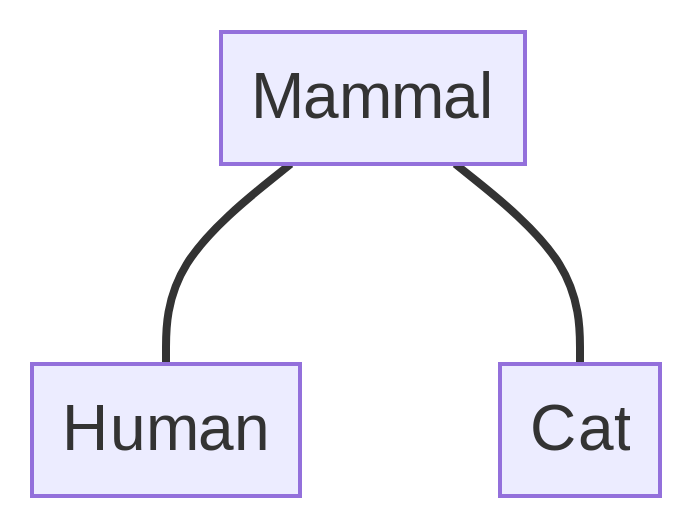

A neat solution to this problem is to start thinking about type hierarchies
Intuitively: types can have hierarchical relationships, a bit like biological taxonomies

Abstract types and inheritance

Important

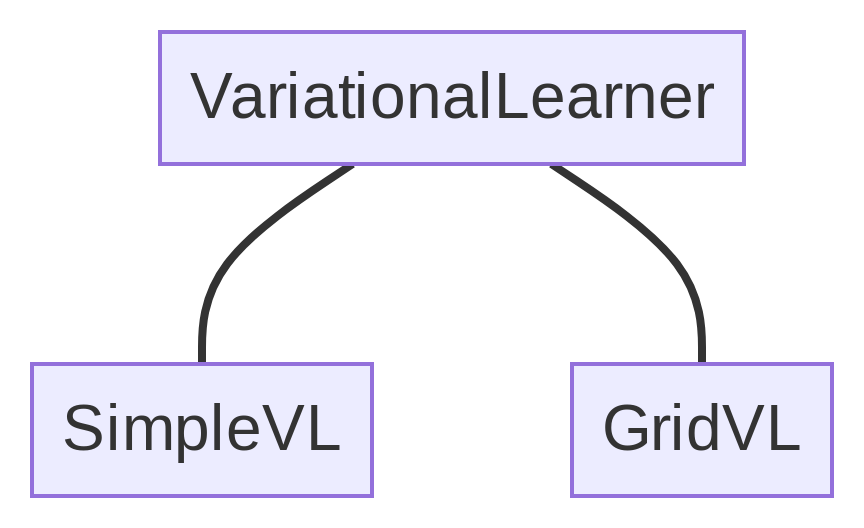

From now on, I will use SimpleVL to refer to our original VariationalLearner, i.e. the type that lives in an unstructured population.

VariationalLearner from now on will denote the supertype of all “variational learnery” things.

Abstract types and inheritance

The point of this is: a function can be defined for the supertype, whose subtypes then inherit that function

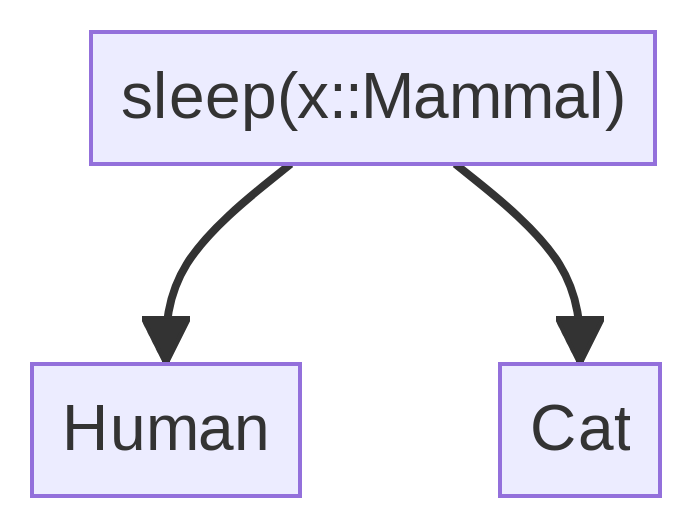

E.g. we can define a sleep function for Mammal
Both Human and Cat inherit this function, and so we don’t need to define one for them separately

Abstract types and inheritance

Similarly, we can define speak for the supertype VariationalLearner
Then both SimpleVL and GridVL have access to this function

Abstract types and inheritance

In Julia such “supertypes” are known as abstract types
They have no fields; they only exist to define the type hierarchy
Inheritance relations are defined using a special <: operator

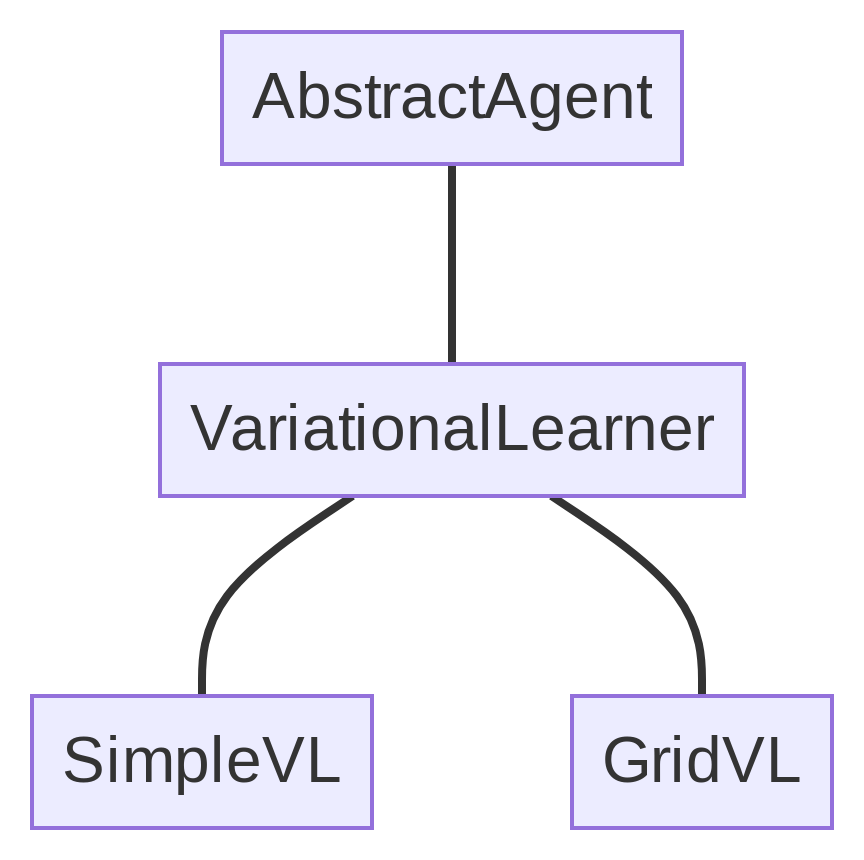

To use Agents.jl, our VariationalLearner abstract type itself needs to inherit from AbstractAgent

Abstract types and inheritance

abstract type VariationalLearner <: AbstractAgent end

mutable struct SimpleVL <: VariationalLearner
  # code goes here...
end

@agent struct GridVL(GridAgent{2}) <: VariationalLearner
  # code goes here...
end

function speak(x::VariationalLearner)
  # code goes here...
end

Abstract types and inheritance

We can now do things like:

bob = SimpleVL(0.1, 0.01, 0.4, 0.1)

speak(bob)

even though speak wasn’t defined for SimpleVL

Multiple dispatch

What if Cat needs to sleep differently from other Mammals?
Easy: we simply define a function sleep(x::Cat)
Other Mammals will use the default function sleep(x::Mammal)

Multiple dispatch

In Julia, this is called multiple dispatch
One and the same function (here, sleep) can have multiple definitions depending on the argument’s type
These different definitions are known as methods of the function
When figuring out which method to use, the compiler tries to apply the method that is deepest in the type hierarchy, moving upwards if such a definition isn’t found
- e.g. in our example calling sleep on Human will trigger the sleep method defined for Mammal, since no sleep method specific to Human has been defined

Our VL code so far

module VL

# Agents.jl functionality
using Agents

# we need this package for the sample() function
using StatsBase

# we export the following types and functions
export VariationalLearner
export SimpleVL
export GridVL
export speak
export learn!
export interact!
export VL_step!


# abstract type
abstract type VariationalLearner <: AbstractAgent end

# variational learner type on a 2D grid
@agent struct GridVL(GridAgent{2}) <: VariationalLearner
  p::Float64      # prob. of using G1
  gamma::Float64  # learning rate
  P1::Float64     # prob. of L1 \ L2
  P2::Float64     # prob. of L2 \ L1
end

# "simple" variational learner in unstructured population
mutable struct SimpleVL <: VariationalLearner
  p::Float64      # prob. of using G1
  gamma::Float64  # learning rate
  P1::Float64     # prob. of L1 \ L2
  P2::Float64     # prob. of L2 \ L1
end

# makes variational learner x utter a string
function speak(x::VariationalLearner)
  g = sample(["G1", "G2"], Weights([x.p, 1 - x.p]))

  if g == "G1"
    return sample(["S1", "S12"], Weights([x.P1, 1 - x.P1]))
  else
    return sample(["S2", "S12"], Weights([x.P2, 1 - x.P2]))
  end
end

# makes variational learner x learn from input string s
function learn!(x::VariationalLearner, s::String)
  g = sample(["G1", "G2"], Weights([x.p, 1 - x.p]))

  if g == "G1" && s != "S2"
    x.p = x.p + x.gamma * (1 - x.p)
  elseif g == "G1" && s == "S2"
    x.p = x.p - x.gamma * x.p
  elseif g == "G2" && s != "S1"
    x.p = x.p - x.gamma * x.p
  elseif g == "G2" && s == "S1"
    x.p = x.p + x.gamma * (1 - x.p)
  end

  return x.p
end

# makes two variational learners interact, with one speaking
# and the other one learning
function interact!(x::VariationalLearner, y::VariationalLearner)
  s = speak(x)
  learn!(y, s)
end

# steps a model
function VL_step!(agent, model)
  interlocutor = random_nearby_agent(agent, model)
  interact!(interlocutor, agent)
end

end   # this closes the module

Benchmarking

When working on larger simulations, it is often important to know how long some function takes to run
It may also be important to know how much memory is consumed
Both of these things can be measured using the @benchmark macro defined by BenchmarkTools.jl

Benchmarking

Example:

using BenchmarkTools

@benchmark sum(1:1_000_000_000)

BenchmarkTools.Trial: 10000 samples with 1000 evaluations.
 Range (min … max):  1.335 ns … 21.823 ns  ┊ GC (min … max): 0.00% … 0.00%
 Time  (median):     1.542 ns              ┊ GC (median):    0.00%
 Time  (mean ± σ):   1.596 ns ±  0.523 ns  ┊ GC (mean ± σ):  0.00% ± 0.00%
  ▅ ▇ ▆▅ █ ▂▇ ▆▇ ▃▅  ▆  ▆▅  ▆▃ ▂▃ ▂▂▂▃▂▁▁          ▁▁        ▃
  █▁█▃██▃█▅██▃██▆██▅███▅██▅▃██▆████████████▆▆▆▇▅▆▇██████▇█▆█ █
  1.34 ns      Histogram: log(frequency) by time     2.26 ns <
 Memory estimate: 0 bytes, allocs estimate: 0.

All roads lead to Rome, but they’re not all equally fast…

Suppose we want to calculate the square root of all numbers between 0 and 100,000 and put them in an array
One way of doing this:

result = []   # empty array
for x in 0:100_000
  append!(result, sqrt(x))   # put √x in array
end

All roads lead to Rome, but they’re not all equally fast…

@benchmark begin
  result = []   # empty array
  for x in 0:100_000
    append!(result, sqrt(x))   # put √x in array
  end
end

BenchmarkTools.Trial: 3134 samples with 1 evaluation.
 Range (min … max):  1.235 ms …   5.818 ms  ┊ GC (min … max): 0.00% … 52.82%
 Time  (median):     1.413 ms               ┊ GC (median):    0.00%
 Time  (mean ± σ):   1.592 ms ± 511.088 μs  ┊ GC (mean ± σ):  8.51% ± 14.51%
  ▁▃▆█▇▅▂▁    ▃▄▃                                             ▁
  █████████▇▄▆███▇▆▄▅▁▅▅▁▁▁▃▃▆▆▇▇▆▅▁▅▁▇▇██▇▇▇▆▆▅▆▆▃▃▃▃▄▇▇▆▇▅▆ █
  1.24 ms      Histogram: log(frequency) by time      3.82 ms <
 Memory estimate: 3.35 MiB, allocs estimate: 100012.

All roads lead to Rome, but they’re not all equally fast…

Another way:

result = zeros(100_000 + 1)
for x in 0:100_000
  result[x+1] = sqrt(x)   # put √x in array
end

All roads lead to Rome, but they’re not all equally fast…

@benchmark begin
  result = zeros(100_000 + 1)
  for x in 0:100_000
    result[x+1] = sqrt(x)   # put √x in array
  end
end

BenchmarkTools.Trial: 10000 samples with 1 evaluation.
 Range (min … max):  100.037 μs … 689.957 μs  ┊ GC (min … max): 0.00% … 49.59%
 Time  (median):     102.822 μs               ┊ GC (median):    0.00%
 Time  (mean ± σ):   114.841 μs ±  44.015 μs  ┊ GC (mean ± σ):  3.94% ±  8.72%
  █▃▁▂▃▂▁▁▂▁▁▁▁▁▁                                               ▁
  ████████████████▇█▆▆▆▅▅▄▁▄▃▁▄▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▃▃▅▃▄▅▅▇▇█ █
  100 μs        Histogram: log(frequency) by time        372 μs <
 Memory estimate: 781.36 KiB, allocs estimate: 2.

All roads lead to Rome, but they’re not all equally fast…

A third possibility:

result = [sqrt(x) for x in 0:100_000]

All roads lead to Rome, but they’re not all equally fast…

@benchmark result = [sqrt(x) for x in 0:100_000]

BenchmarkTools.Trial: 10000 samples with 1 evaluation.
 Range (min … max):  78.327 μs … 654.640 μs  ┊ GC (min … max): 0.00% … 49.57%
 Time  (median):     79.472 μs               ┊ GC (median):    0.00%
 Time  (mean ± σ):   87.674 μs ±  32.322 μs  ┊ GC (mean ± σ):  3.61% ±  8.48%
  █▂▁▁▁▃▁        ▁                                             ▁
  ████████▆█▇█▇▇▇█▇█▆▆█▇▆▃▃▄▁▄▁▃▁▁▁▁▁▁▃▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▆▇▇▇▆▅ █
  78.3 μs       Histogram: log(frequency) by time       275 μs <
 Memory estimate: 781.36 KiB, allocs estimate: 2.

All roads lead to Rome, but they’re not all equally fast…

A fourth way:

result = sqrt.(0:100_000)

All roads lead to Rome, but they’re not all equally fast…

@benchmark result = sqrt.(0:100_000)

BenchmarkTools.Trial: 10000 samples with 1 evaluation.
 Range (min … max):  78.441 μs … 605.374 μs  ┊ GC (min … max): 0.00% … 48.05%
 Time  (median):     79.186 μs               ┊ GC (median):    0.00%
 Time  (mean ± σ):   87.363 μs ±  31.767 μs  ┊ GC (mean ± σ):  3.71% ±  8.67%
  █▁▁▁▂▃▁    ▁▁  ▁                                             ▁
  ████████▇█████▇███▆▆▆▅▄▁▁▃▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▅▇█▇▆ █
  78.4 μs       Histogram: log(frequency) by time       274 μs <
 Memory estimate: 781.36 KiB, allocs estimate: 2.

Summing up the findings

Procedure	Median time	Mem. estimate
Growing an array	~1.4 ms	~3.4 MiB
Adding to 0-array	~0.1 ms	~0.8 MiB
Array comprehension	~80 µs	~0.8 MiB
Broadcasting	~80 µs	~0.8 MiB

Summing up the findings

Lesson: try to avoid growing (and shrinking!) arrays whenever possible
Of course, sometimes this is practically unavoidable (such as when adding and removing agents from a population)
Another lesson: if procedure X gets repeated very many times in a simulation, try to make X as efficient as possible
- Procedures which are only carried out once or a few times (such as initializing a population) don’t matter so much

Random numbers

In the first lecture, we talked about the importance of (pseudo)random numbers in ABM simulations
E.g. whenever an agent needs to be sampled randomly, the computer needs to generate a random number
There are two important issues here:
1. Reproducibility – how to obtain the same sequence of “random” numbers if this is desired
2. Consistency – making sure that whenever a random number is drawn, it is drawn using the same generator (i.e. from the same sequence)

Reproducibility

Recall: a PRNG (pseudorandom number generator) generates a deterministic sequence which appears random
The sequence is generated from an initial seed number
If you change the seed, you obtain different sequences
Normally, when Julia is started, the PRNG is seeded with a different seed every time
- Hence, you obtain different sequences

Reproducibility: illustration

To illustrate this, suppose you want to toss a coin 10 times. This is easy:

rand(["heads", "tails"], 10)

10-element Vector{String}:
 "tails"
 "tails"
 "tails"
 "heads"
 "tails"
 "heads"
 "heads"
 "tails"
 "tails"
 "heads"

Reproducibility: illustration

Now restart Julia and execute the same thing. You will get a different result:

# here, restart Julia...

rand(["heads", "tails"], 10)

10-element Vector{String}:
 "tails"
 "tails"
 "heads"
 "heads"
 "heads"
 "heads"
 "tails"
 "tails"
 "tails"
 "heads"

Reproducibility: illustration

If you want to make sure the exact same sample is obtained, you can seed the PRNG manually after startup
For example, seed with the number 123:

using Random
Random.seed!(123)

rand(["heads", "tails"], 10)

10-element Vector{String}:
 "tails"
 "tails"
 "tails"
 "heads"
 "tails"
 "heads"
 "heads"
 "tails"
 "tails"
 "heads"

Reproducibility

Why would you do this? Wasn’t randomness kind of the point?
Suppose someone (e.g. your supervisor, or an article reviewer) wants to check that your code actually produces the results you have reported
Using a manually seeded PRNG makes this possible

Consistency

It is possible to have multiple PRNGs running simultaneously in the same code
This is rarely desired, but may happen by mistake…
For example, when you call StandardABM, Agents.jl will set up a new PRNG by default
If your own functions (such as speak or learn!) utilize a different PRNG, you may run into problems
- For one, it will be difficult to ensure reproducibility

Consistency

To avoid this, pass Random.default_rng() as an argument to StandardABM when creating your model:

using Agents
using Random
include("VL.jl")
using .VL

Random.seed!(123)

space = GridSpace((10, 10))

model = StandardABM(GridVL, space; agent_step! = VL_step!,
                    rng = Random.default_rng())

Reminder: not all agents are humans!

Looking ahead

Homework:
1. Keep thinking about your project!
2. Read Smaldino (2023), chapter 10

Looking ahead

The following two weeks constitute a break for us: the first one is the lecture-free period, the second one is consolidation week (“Vertiefungswoche”)
After this break, you need to
1. have a project team (or have decided to work on your own)
2. have at least an initial idea about your project topic
If you struggle, I’m happy to help! You can always write me an email, and/or come to see me in my office.

References

Smaldino, Paul E. 2023. Modeling Social Behavior: Mathematical and Agent-Based Models of Social Dynamics and Cultural Evolution. Princeton, NJ: Princeton University Press.
